Express PCB assembly service

PROTOTYPE PCB ASSEMBLY SERVICES

For quick-turn prototypes and
small production runs

24 Hours Turn
  • 8 PCBs Maximum
  • Up to 15 BOM Line Items
  • Up to 70 SMT placements / board
  • Maximum of 8 Through Hole Components per Order
48 Hours Turn
  • 20 PCBs Maximum
  • Up to 20 BOM Line Items
  • Up to 150 SMT placements / board
  • Maximum of 40 Through Hole Components per Order
5 Days Turn
  • 100 PCBs Maximum
  • Up to 40 BOM Line Items
  • Up to 500 SMT placements / board

  • Maximum of 200 Through Hole Components per Order
Express PCB assembly service

PRODUCTION PCB ASSEMBLY SERVICES

For medium and large
production runs

7 Days Turn
  • 500 PCBs Maximum
  • Up to 70 BOM Line Items
  • Maximum of 500 Through Hole Components per Order
10 Days Turn
  • 1000 PCBs Maximum
  • Up to 90 BOM Line Items
  • Maximum of 1000 Through Hole Components per Order
15 Days Turn
  • 4000 PCBs Maximum
  • Up to 120 BOM Line Items
  • Maximum of 4000 Through Hole Components per Order
Schedule Shipping
  • Unlimited number of PCBs
  • Unlimited number of BOM Line Items
Turnkey assembly
Turnkey Assembly

Sit back and relax, we'll do it
all for you!

learn more
Consignment assembly
Consignment Assembly

You provide the bare boards and
all the electronic components (parts).

learn more

In addition to prototype and production
PCB assembly we offer the following services:

Enginering services
Engineering Services

Our team of design and layout engineers are ready to work with you regardless the size and complexity of your project.

PCB Fabrication
PCB FABRICATION
(USA, Taiwan & China)

We partner with a number of printed circuit board manufacturers in the USA, Taiwan and China to provide our customers a wide range of PCB capabilities.

Electronic Assembly
Electronic Assembly

We are a full service Electronic Contract Manufacturer located Oregon with over 12 years of experience.

Electronic Components Sourcing
Electronic
Components Sourcing

Our supply chain comprises component manufacturers, authorized distributors, and brokers who specialize in hard to find components.

Enginering services
Wire and Cable Harness

Cable assemblies and wire harnesses are similar in the sense that they are both provide protection from electrical flow.

PCB Fabrication
Inspection and Testing

We inspect your printed circuit boards at various stages of the manufacturing process for early detection of faults.

Capabilities

PCB Assembly
Rigid, Flex & Rigid-Flex Assembly
SMT, Through-hole & Mixed Technology
Single & Double Sided SMT
Leaded & Lead Free (RoHS) Chemistries
No-Clean & Water Soluble Fluxes
SMT component size 0201 or greater
Ball Grid Array (BGA & µBGA), QFN, CSP and
lead-less devices
Class II & Class III
Visual and Automatic Optical Inspection (AOI)
X-ray (leadless components)
Functional Testing
Water soluble is our standard flux. All assembled boards are
cleaned with de-ionized water.
PCB Fabrication
Rigid, Flex, Rigid-Flex & Metal Core PCBs
Rigid PCBs up to 40 layers
ISO-9001 and UL certified
3-mil traces and 3.5-mil spaces
Minimum Mechanical drill size 8-mil
Minimum Laser drill size 3-mil
Controlled Impedance
Controlled Dielectric
Blind / Buried Vias
Heavy Copper
Class III
RoHS Compliant
High temperature, high frequency material

TECHNOLOGY

Because we are committed to meeting your lead time and quality
requirements we are constantly investing in the latest technology
  • Pick and Place machine Mycronic-Y300

    Mycronic-MY300
    Pick-And-Place Machine

  • Pick and Place machine Yamah-YCM20

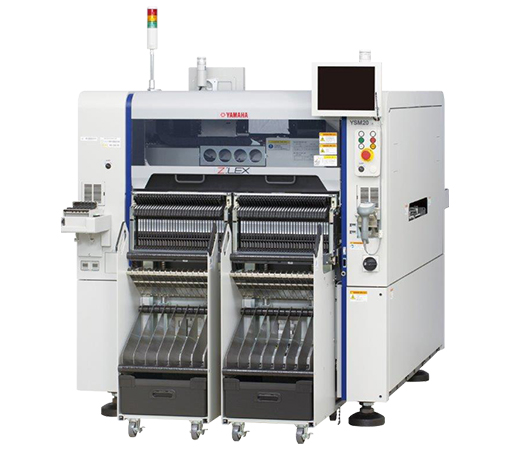

    Yamaha-YSM20R
    Pick-And-Place Machine

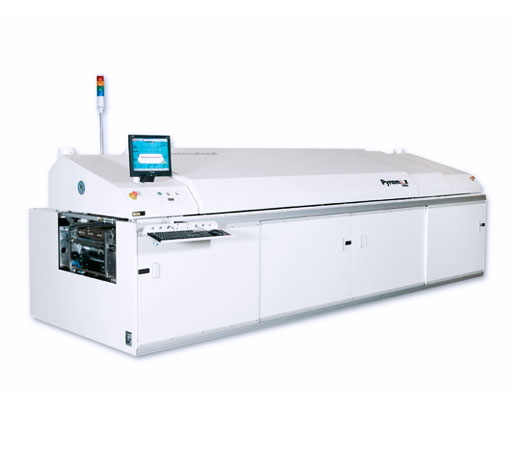

  • Pyramax Convection Reflow Oven 100A

    BTU Pyramax™ Convection
    Reflow Oven 100A

  • Automatic Stencil Printer Yamaha YCP 10

    Yamaha YCP 10
    Automatic Stencil Printer

  • Automatic Stencil Printer ITW EAE MPM 100

    ITW EAE MPM 100
    Automatic Stencil Printer

  • Automatic Optical Inspection - Yestech BX

    Automatic Optical Inspection
    Yestech BX

  • Novo 103 Selective Soldering Nordson

    Novo® 103
    Selective Soldering Nordson

  • T-9 Typhoon Water Soluble Inline Cleaner

    T-9 Typhoon
    Water Soluble Inline Cleaner

  • Pick and Place machine Mycronic-Y300

    Mycronic-MY300
    Pick-And-Place Machine

  • Pick and Place machine Yamah-YCM20

    Yamaha-YSM20R
    Pick-And-Place Machine

  • Pyramax Convection Reflow Oven 100A

    BTU Pyramax™ Convection
    Reflow Oven 100A

  • Automatic Stencil Printer Yamaha YCP 10

    Yamaha YCP 10
    Automatic Stencil Printer

  • Automatic Stencil Printer ITW EAE MPM 100

    ITW EAE MPM 100
    Automatic Stencil Printer

  • Automatic Optical Inspection - Yestech BX

    Automatic Optical Inspection
    Yestech BX

  • Novo 103 Selective Soldering Nordson

    Novo® 103
    Selective Soldering Nordson

  • T-9 Typhoon Water Soluble Inline Cleaner

    T-9 Typhoon
    Water Soluble Inline Cleaner

Instant access to SMT stencils and PCB assembly fixtures

Because we are located in the same building
with our sister company Stencils Unlimited,
we have instant access to SMT stencils and
PCB assembly fixtures. If a stencil or fixture
does not work properly we don't have to wait.
We just make a new one.

SMT stencils
